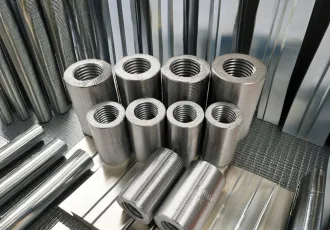

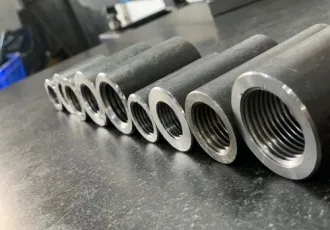

A rebar coupler is a steel sleeve used as a mechanical joint for reinforcing bars (rebars). It connects the ends of rebar rods that have been rolled and threaded into straight threads, typically ranging in diameter from 12mm to 50mm. Standard sizes include 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, and 32mm. These couplers play a vital role in ensuring that the structural integrity of concrete frames meets design specifications.

Material Standards

The material standard for rebar couplers is critical to their performance and longevity. It is recommended that couplers be manufactured using high-quality carbon structural steel, specifically 45# steel or seamless steel pipe. The yield strength of these couplers should be a minimum of 355 MPa. This ensures that the mechanical coupler can withstand the various forces it encounters in application, providing reliability in structural joints.

Performance Grades

Rebar couplers are classified according to the JGJ 107 standard, which categorizes them into three performance grades: Grade I, Grade II, and Grade III. The Grade I joints must exhibit a tensile strength that is no less than 1.10 times the standard value for the tensile strength of the rebar it connects. This emphasis on strength ensures that the mechanical coupler can effectively transfer forces without compromising the safety or performance of the structure.

Dimensional Tolerances

Precision in the manufacture of rebar couplers is vital for their performance. The external diameter of the coupler allows for a tolerance of ±0.5mm, while the length is also permitted a deviation of ±0.5mm. Furthermore, the accuracy of the threads must be verified through a go/no-go gauge inspection to ensure proper fit and function when connecting rebars.

In conclusion, understanding the technical specifications of rebar couplers is essential for engineers and construction professionals. The employment of high-quality materials, adherence to performance grades, and strict dimensional tolerances are critical factors that contribute to the effectiveness and safety of these mechanical couplers in construction projects. Ensuring compliance with these specifications not only enhances the structural integrity of concrete frameworks but also aligns with industry standards, ultimately leading to successful and lasting construction outcomes.
